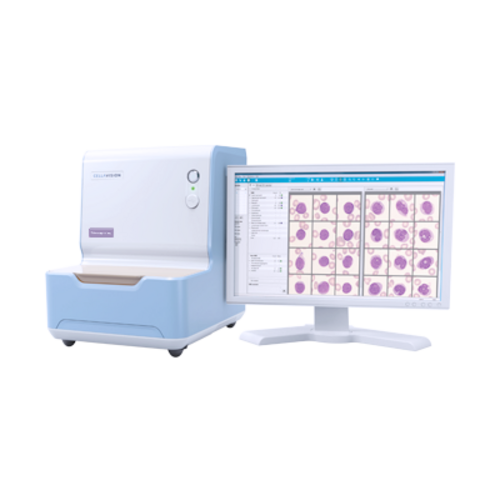

CellaVision® DC-1 VET
Digital imaging analyser
- Accelerated turnaround time to clinical diagnosis
- Enhanced quality of results from consistency and standardisation
- Automatically locate, capture and pre-classify white blood cells by means of high-quality images
- Pre-characterise red blood cell morphology and perform platelet estimates
- Connectivity that facilitates remote collaboration and validation of results
- Valuable education tool aided by the reference cell library and side-by-side blood cell images
For canine and feline species, the CellaVision Peripheral Blood Application automatically pre-classifies white blood cells into the following classes: band neutrophils, segmented neutrophils, eosinophils, basophils, lymphocytes, monocytes and other. Non-WBCs are classified into nucleated RBC, giant platelets, thrombocyte aggregations, smudge cells and artefacts.
For avian species, white blood cells will be pre-classified as heterophils, eosinophils, basophils, lymphocytes and monocytes. Non-WBCs are classified into giant platelets, platelet aggregations and artefacts.
Slide Handling
- Accepts slides with ground edges, clipped, round or square corners
- Order ID for slides entered either manually or using an optional barcode reader
- Slides are loaded one slide at a time
- Analyses slides with blood smears
Quality Control
- Cell location accuracy test for the verification of the hardware and stain quality
- Built-in smear check
Storage Capacity
- Primary storage: on local hard drive up to 1,500 slides (20 GB)
- Secondary storage: unlimited when transferred to external storage media
Communications
- Bi-directional LIS support, ASTM
- Ethernet 100/1000 Mbps
- Multiple CellaVision® DM/DC analysers can share a database
System Components
- Slide Scanning Unit (SSU) with integrated PC and Windows 10 embedded CellaVision DM software
Size (W x D x H) and weight
- 280 x 390 x 370 mm (11.0 x 15.4 x 14.6 inches)
- 11 kg / 24 lbs
Throughput
- Approximately 10 slides per hour for orders containing RBC, PLT and 100 WBC
- Approximately 5 slides per hour for complete orders including feathered edge scans
Accessories
- QC label
- Hand-held barcode reader
- CellaVision immersion oil
- HemaPrep® blood smearing device
- Label printer kit
